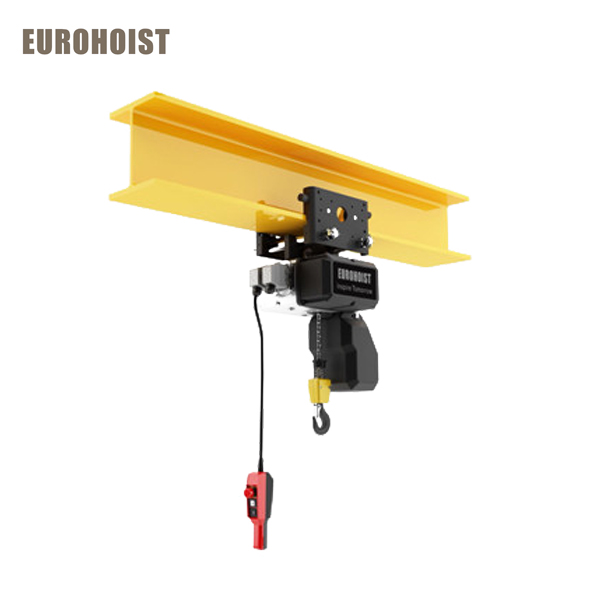

EuroHoist Electric Chain hoist Features

• Gearbox: Maintenance-free, working-level for M6, Dongqi European electric chain hoist with a rated service life of 1990 full load hours. In practical terms, this means the service life is extended by approx.20%. The helical gearling inside the gearbox also reduces operating noise and provide smooth operation.

• Brake: Because of minimum wear, adjustment is not necessary. The brake is enclosed in enclosed in the electrical panel and provides double protection from the elements.

• Slip clutch: Integrated begin the brake in the power drive.it provides reliable protection against overload.Integrated slip clutch monitoring prevents permanent damage to the slip clutch.

• Height adjustable control pendant cable: The length of the control cable. Therefore, the suspension height of the control pendant can be infinitely varied for a hook path range of 2-5m and 5-8m. The excess control cable is accommodated behind the service cover.

• Control: 24V contactor control.operating limit switches (upper/lower).

• Steel chain: A special chain of high-strength.Hardened age-resistant material. Galvanized and other surface-treatments are available to protect against specific hostile environments

• Suspension bracket: Dongqi European hoists are supplied with short and long suspension brackets as standard and can always be attached to the super-structure with the optimal connection.

• Housing: Robust and lightweight die-cast aluminium housing of compact and modern industrial design. Automotive paint to provide more long-term protection.

• Hoist motor: High-performance motor with large safety reserves even at high ambient temperatures and in prolonged operation.Using 2 hoist speed with 1:4 speed ratio and frequency control to multi-speed requirements.

• Chain drive: The unit is a complete assembly consisting of the chain and chain guide which facilitates quick and easy replacement of the entire chain drive without having to remove the motor or gear parts. Downtime can therefore be reduced significantly. The chain drive consists of highly wear-resistant materials for long service life.

• Chain collector box: Suspended from a pivoting connection, is made of tough, flexible and particularly impact-resistant plastic. Capacity for up to 8m hook path, a flexible chain container for chain lengths up to 40m as well as special lengths up to 120m.

• Bottom block: Comfortable hook device by hand For improved ergonomic handling of the hook. The hook after forging processing to make great-strength, hooks rotate by 360 degrees, a specially designed safety tongue,to ensure safe operation.
